4X4² Coilover Lifting Kits

Spec:

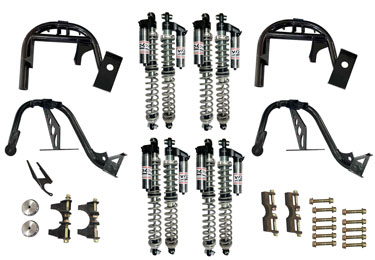

G5504×4-style Dual Shock Conversion for Mercedes G-class W463

Type:Threaded

Height Adjustable:up to+50mm

Shocks:8

Springs:8

Includes:Suspension Mounts Brackets

Applications:AII W463 Models

Installation Note:Each corner uses 2shocks

Outer bore: 2.5";

Shaft Dia:22mm ;

Travel customize 8"-10";

Compression 10 steps adjustable;

Color :custom

Thread gas filling type finne gas tanks -55mm/2.165",

Reservior cylinder:Finned tank/ Nipple gas filler;

Spring Front & Rear 200/250lbs or -1×150B and1×200B.

Heat treated eyelet bushes

Gas Pressure:100-200psi

Features:

1, Shock Body Outside Diamter: 2.5inch

2, Shock Body Material: High quality Mild Steel

3, Shock Body Precision Bored Tolerance:+/-0.001

4, Shock Body Surface Treatment:Anti rust coating

5, Internal Construction Design: Monotube / IFP (Internal Floating Piston)

6, Rebound Damping Force Adjustability: W/

7, Compression Damping Force Adjustability:W/

8, Internal Bypass:Non

9, Internal Hydrualic Bump Stop:Non

10, Internal Bump Adjustability:Non

11, Reverse Hydraulic Bump Stop: Non

12, Remote Reservoir: YES

13, Remote Reservoir Material: Mild Steel

14,Reservoir Body Outside Diameter: 65mm

15, Shaft(Piston Rod):22mm

16, Working Temperature:-60C to 180C
