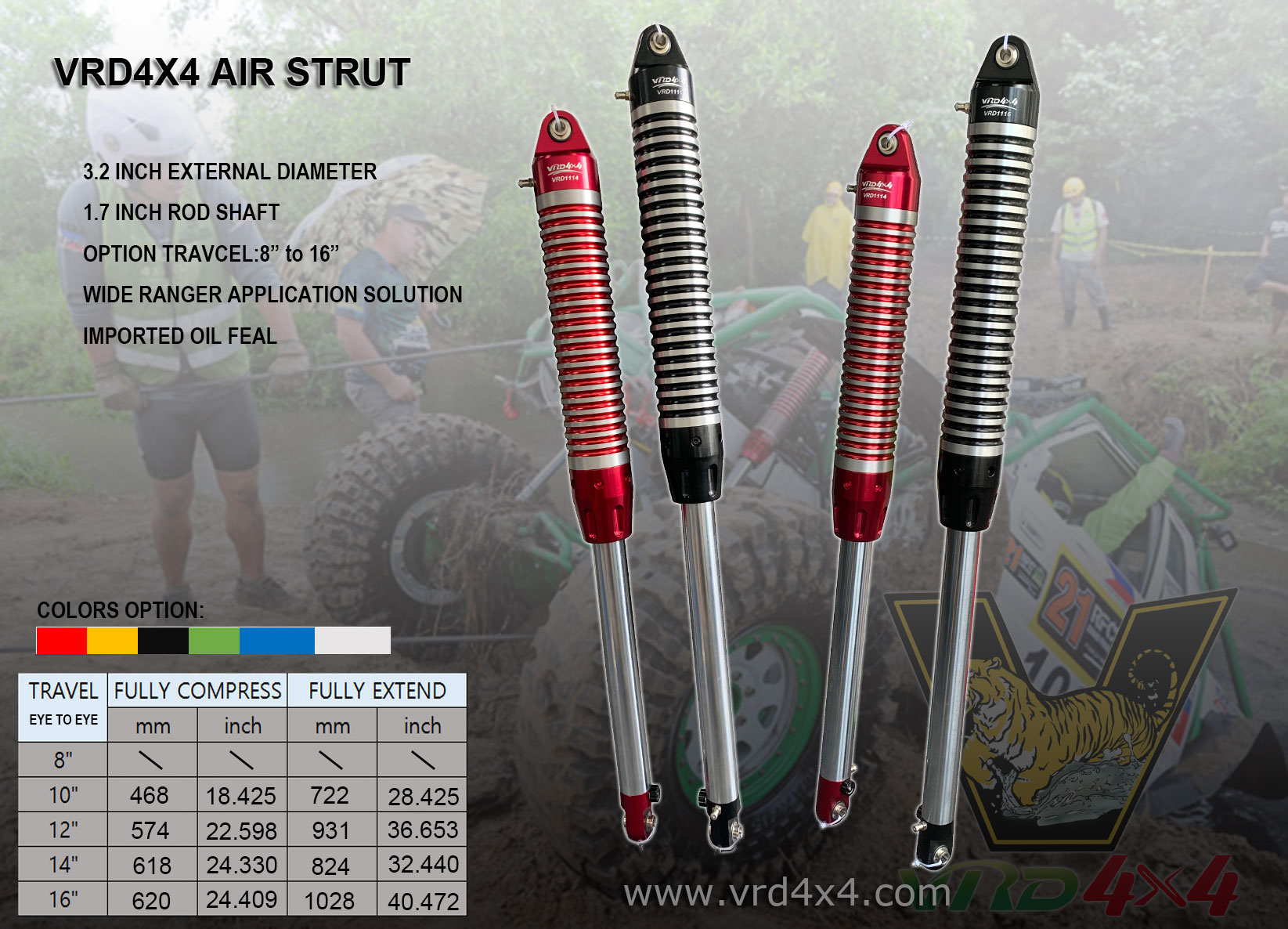

ATV AIR STRUTS 8"-16"

Strut Specifications:

SEALS: Redundant sealing pack system, main seal, wiper seal, scraper seal

OIL: FOCHS Suspension Fluid for improved performance at variable temperatures

Tunable anywhere from firm ride to loose articulation by simply adjusting nitrogen gas pressures.

Higher load capacity than conventional air shocks.

Nitrogen gas charge over 2" piston supports up to 1900 lbs/strut.

Compact, simple installation fits tight spaces, and replaces a lot of unnecessary hardware.

Velocity-sensitive, 7-position externally-adjustable rebound damping.

Internal hydraulic bump stop on compression stroke.

Hydraulic end-of-stroke cushioning at full extension.

Cooling fins dissipate heat.

Lightweight construction.

Billet 6061 aluminum, stainless and high-strength carbon steel.

Hard chrome steel cylinder and tough 1 ¾" piston shaft.

Teflon-lined spherical bearings for 1/2" & 5/8" mounting bolts.

High pressure 5000 psi seals for extreme off-road abuse.

Corrosion resistant anodize outer coating.

Piston shafts can be set to extend to a park position, then wheel and axle weight can still pull the struts to full extension.
